Shoulder Buttons

The next pictures shows how to add L1, R1, L2 and R2 to the 2nd revisions of the Bittboy. Thanks to WenTao for this.

Warning:\ This guide is under development, in some console revisions the L2 and R2 button may not work with some CFW versions.

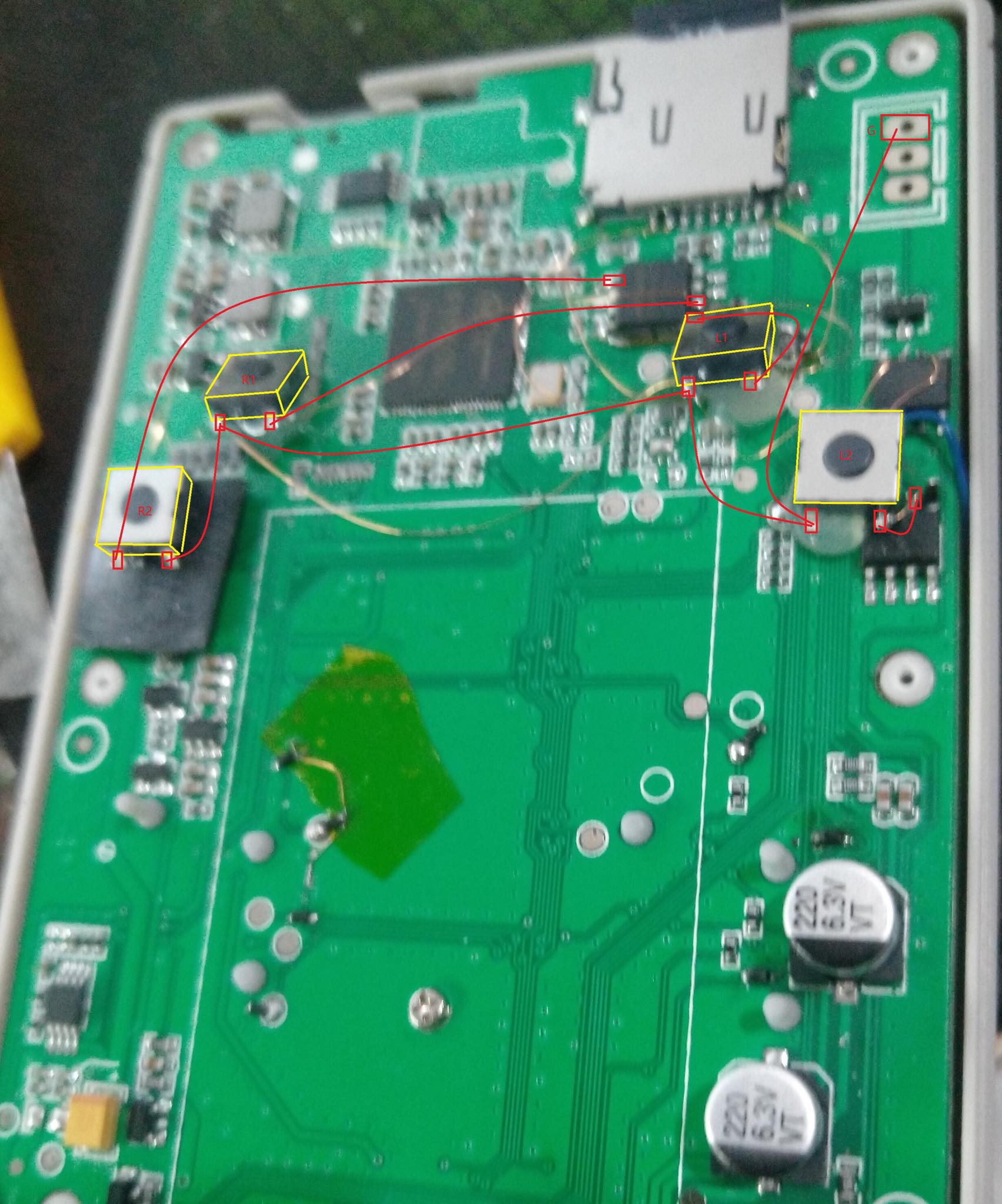

1) Placing the buttons

l-r-1

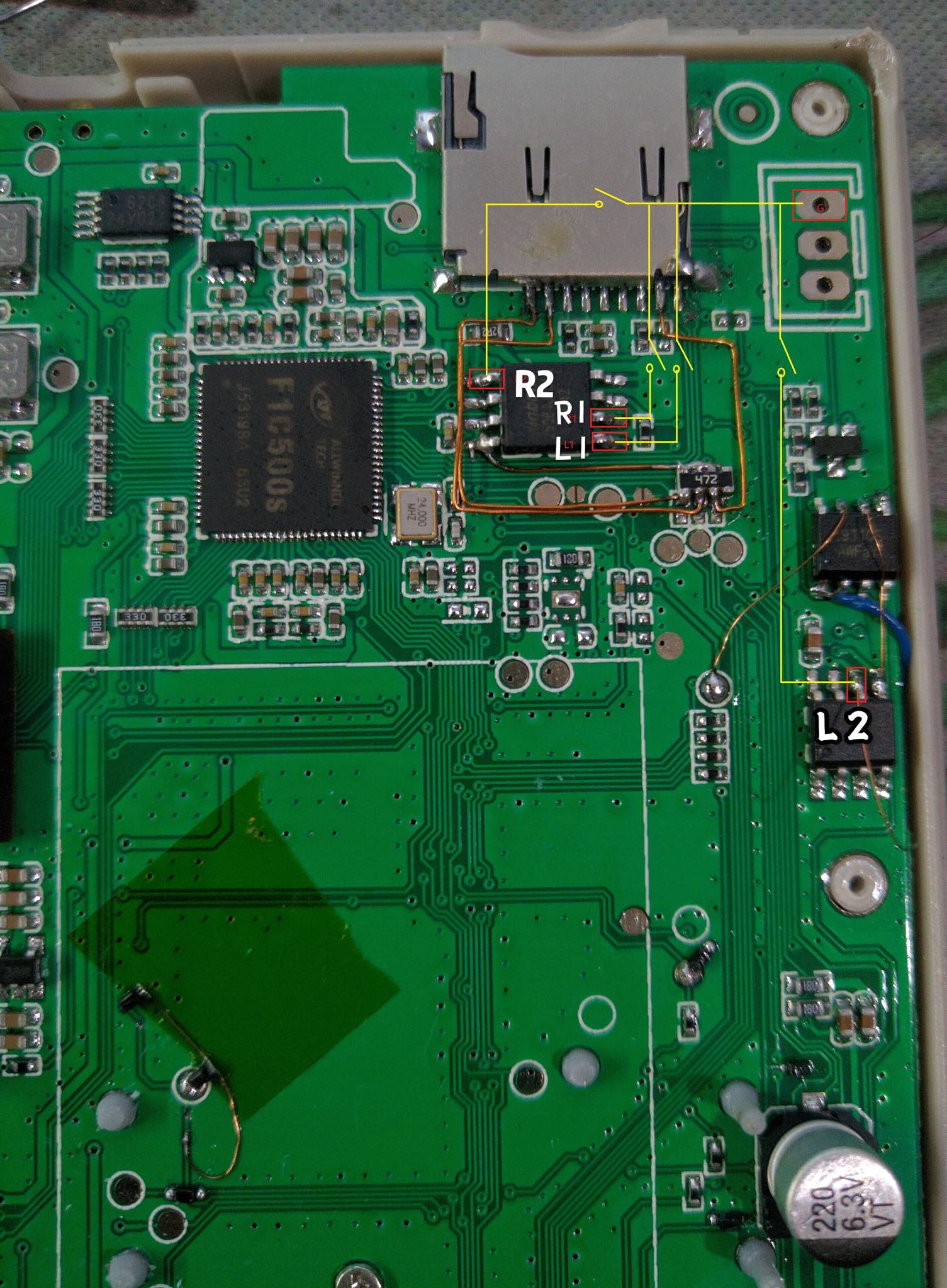

2) Identify the connectors

Circuit pins (no resistor boost is required for all keys, use the internal resistor boost):

L1 to SPI IC pin 1\ R1 to SPI IC pin 2\ L2 to SPI IC pin 6\ R2 to SPI IC pin 5\ l-r-2

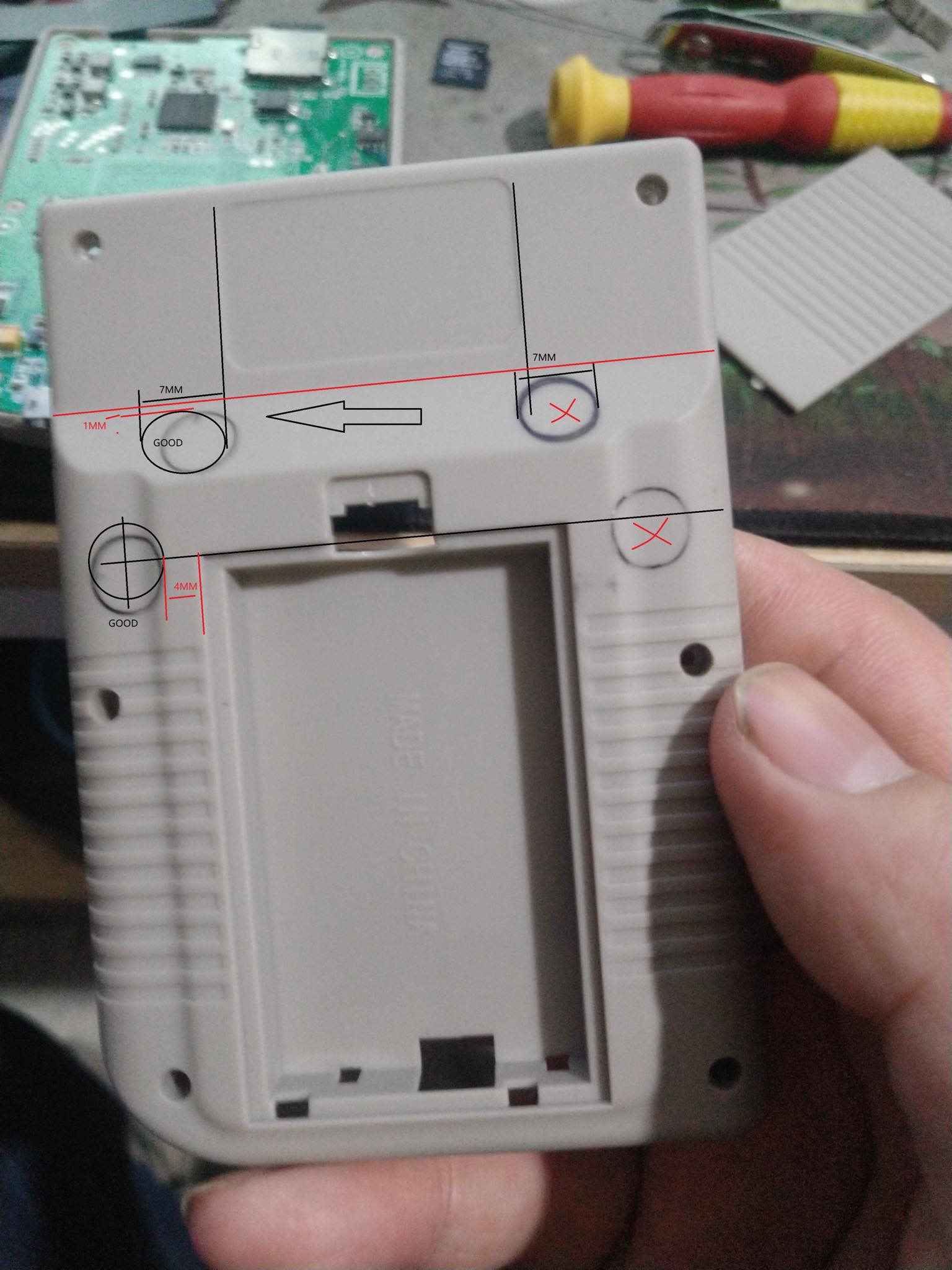

3) Trim the case

l-r-3

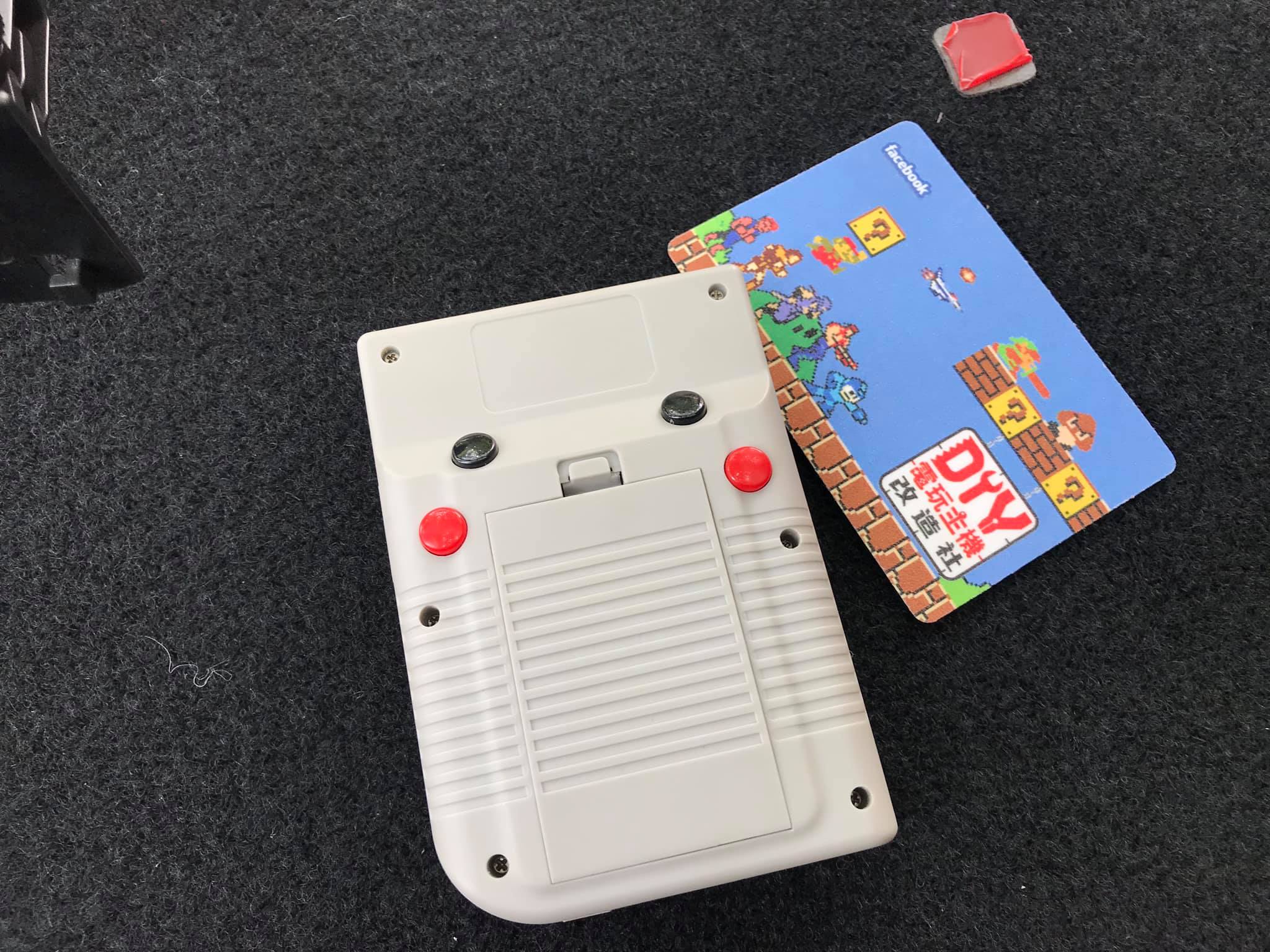

4) Final product

l-r-4
